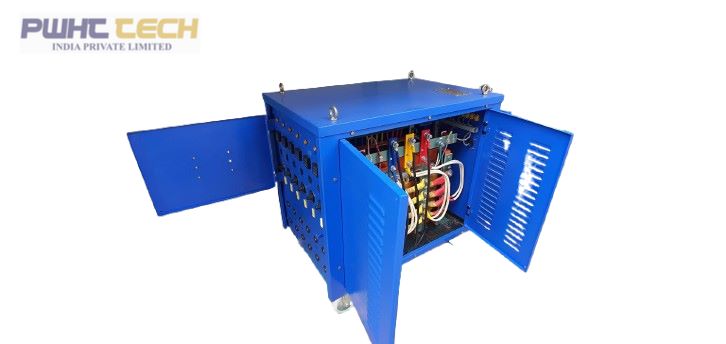

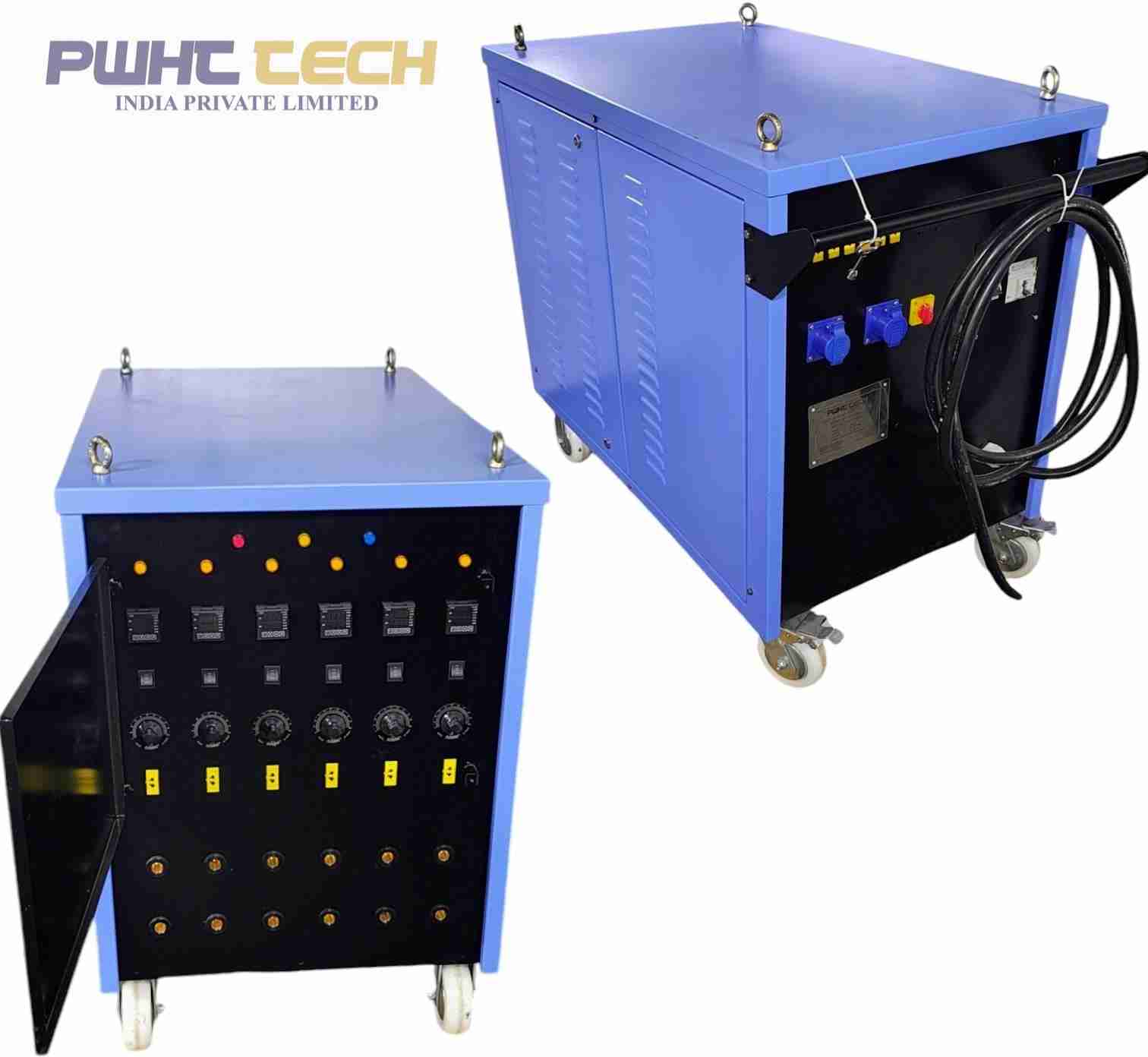

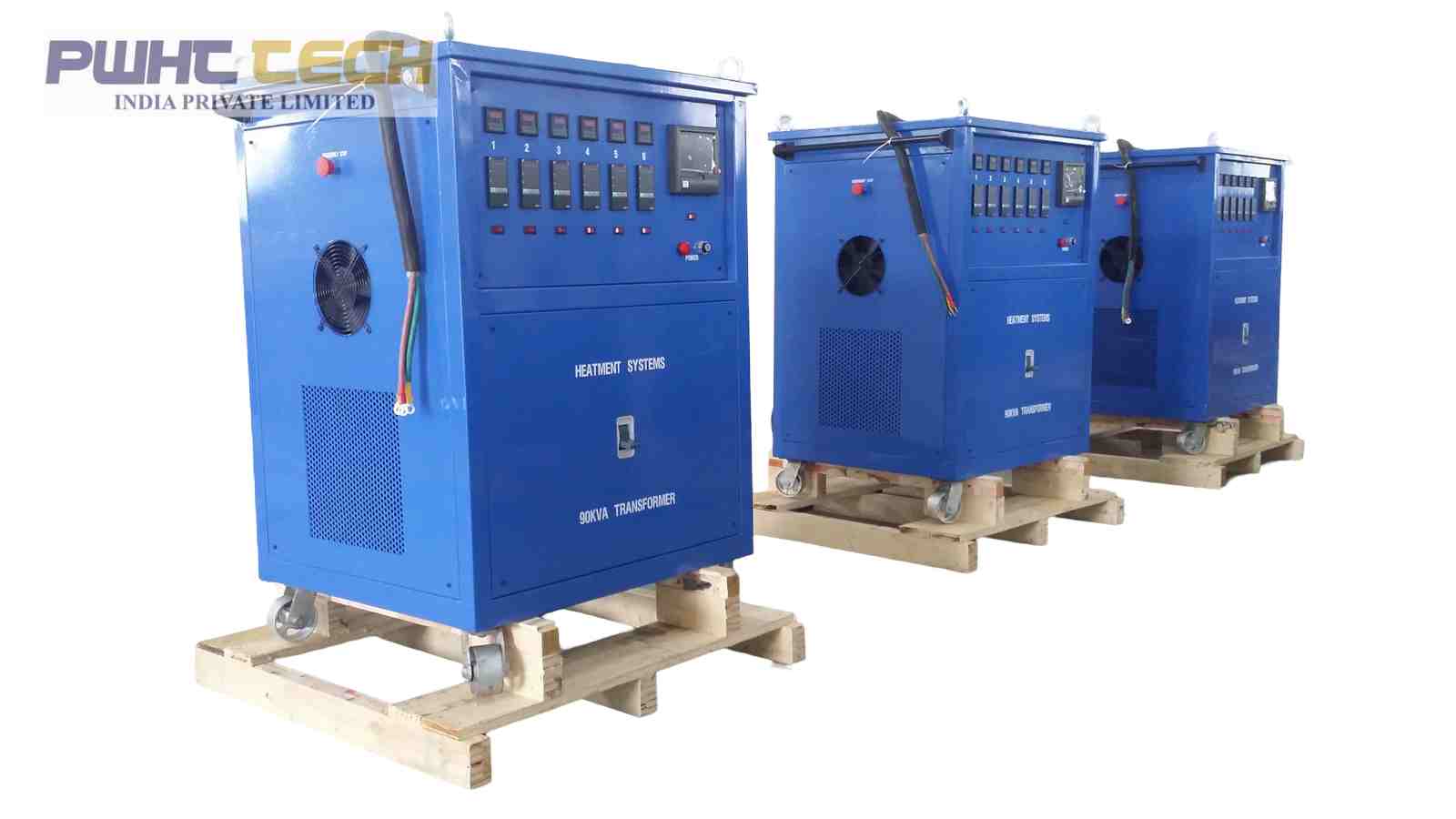

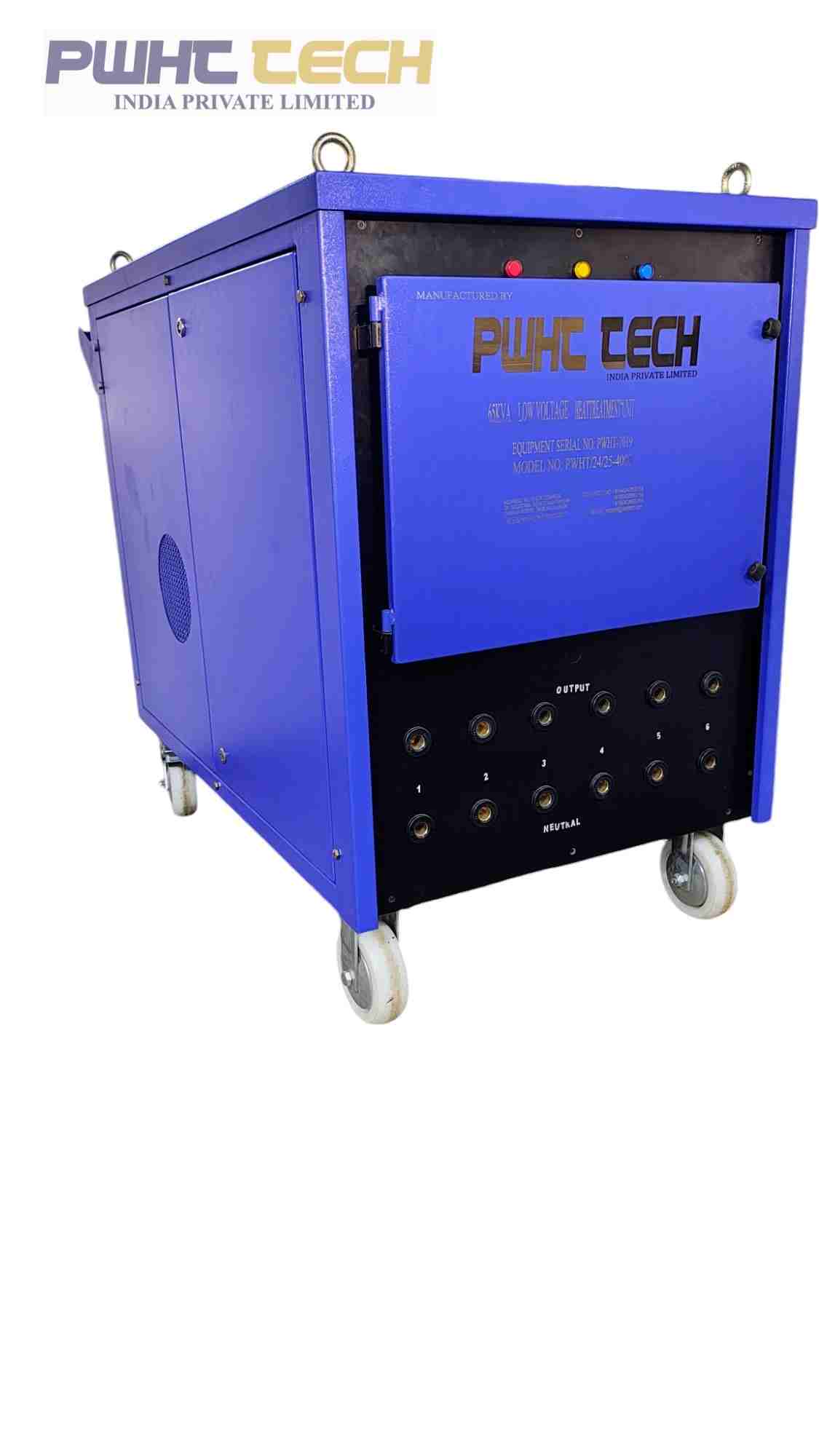

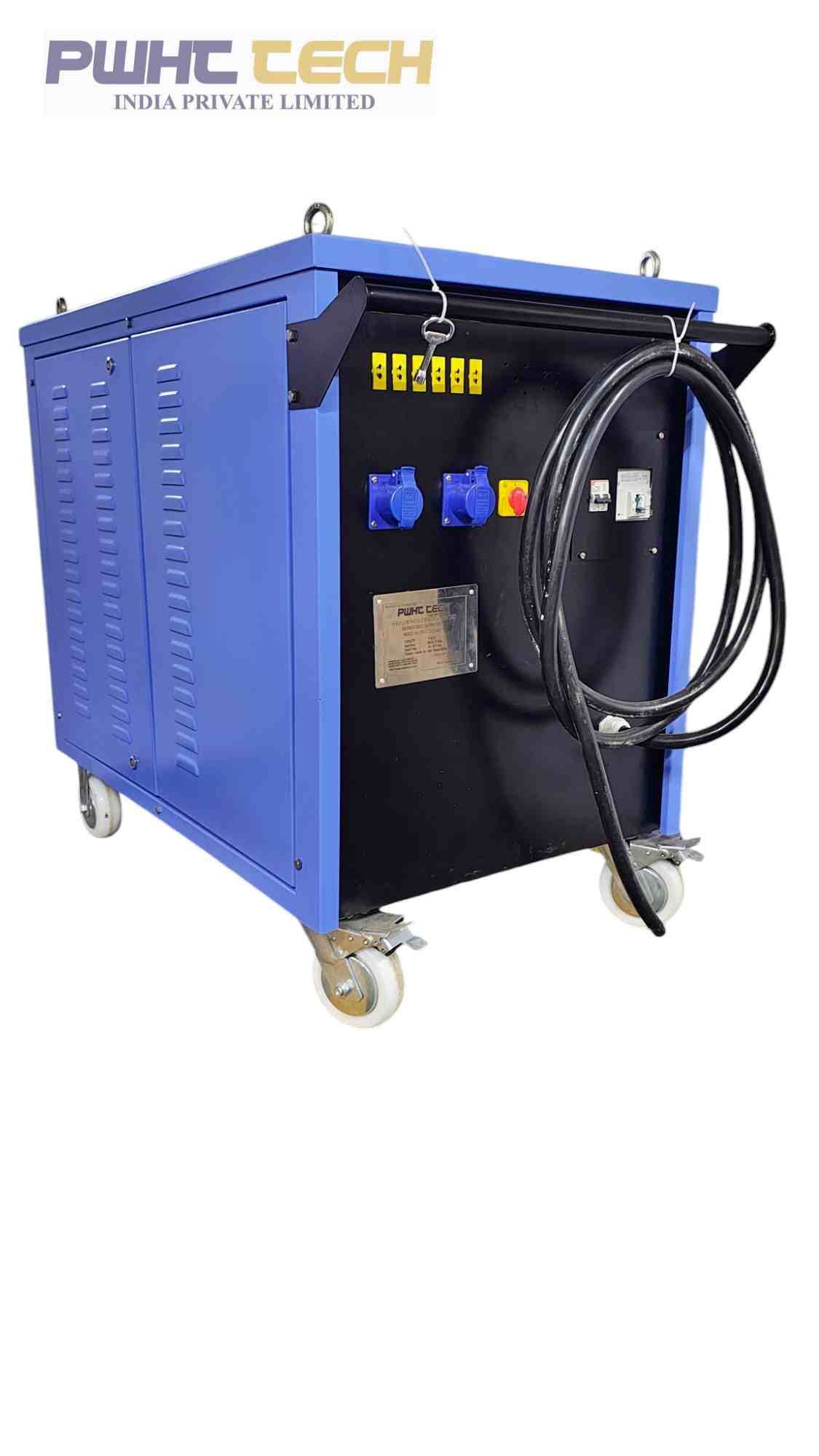

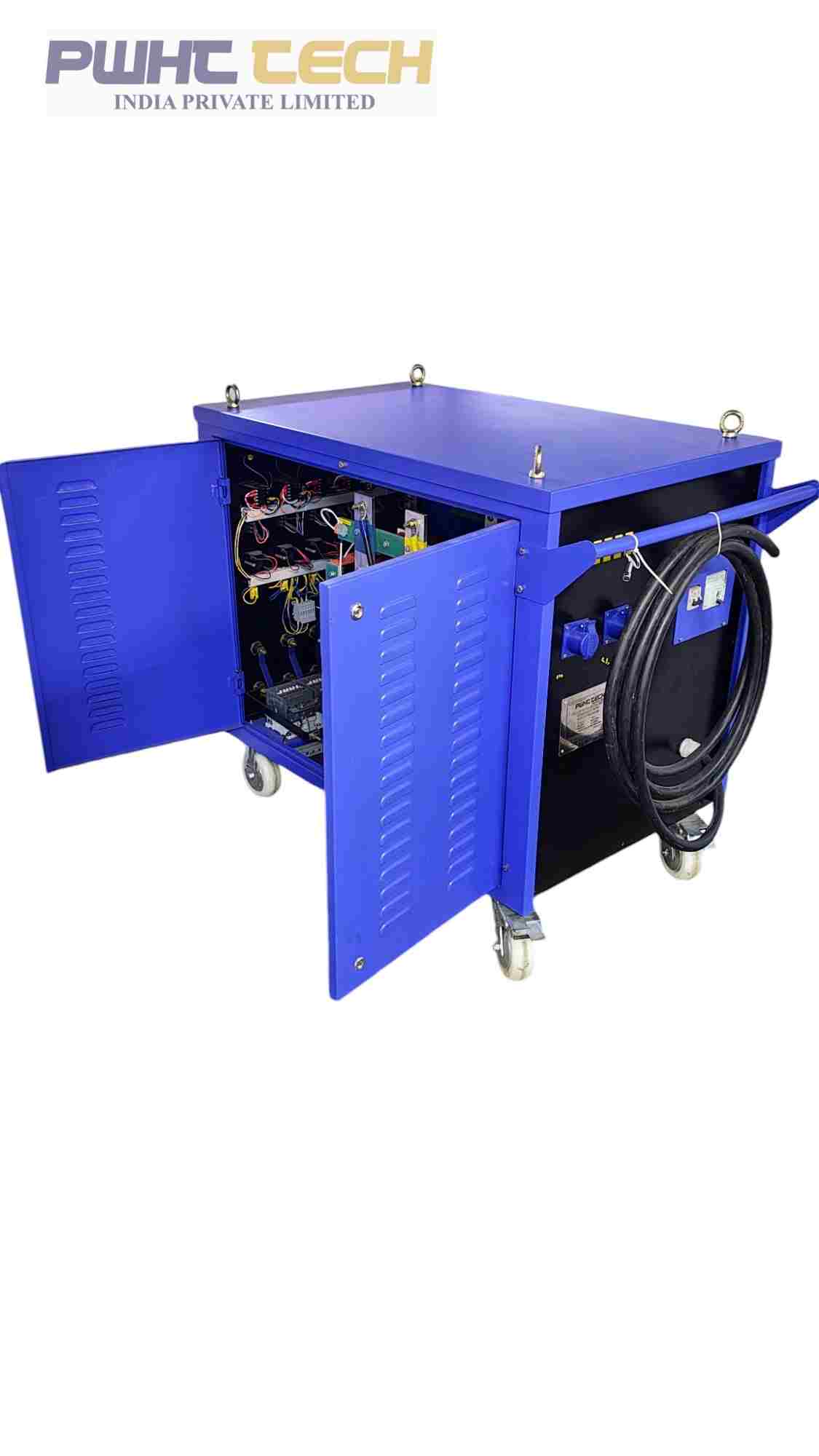

    75KVA Heat Treatment Equipment

    75KVA Heat Treatment Equipment

    PART NO: LVHT75K

    The LVHT75K 75KVA Heat Treatment Equipment is a state-of-the-art solution for Post Weld Heat Treatment (PWHT) operations. It utilizes the traditional low-voltage electrical resistance method with Ceramic Pad Heaters and Ceramic Blankets, controlled by step-down transformers. This system provides an efficient and convenient approach to many industrial jobs, particularly preheating and PWHT, ensuring optimal results in stress relief, microstructure improvement, and weld integrity.

    The unit features six individual output channels, each capable of delivering 12.1 kW of power, which is sufficient to operate four standard ceramic pads rated at 2.7 kW. This heat treatment system is mobile and can be used on-site or in a fabrication shop. It is designed to be flexible, with multiple control options, including fully-integrated individual programmers, external programmers, and individual proportional energy regulators.

    With robust features and easy-to-use controls, the LVHT75K is the ideal solution for ensuring structural integrity and reducing risks associated with welding processes, such as stress cracking and fatigue.

    Contact our support team for further information
    support@pwhttech.com

    Specifications :

    General Information:
    Application: Post Weld Heat Treatment (PWHT), Preheat, Stress Relief, Tempering, Metal Fatigue Prevention

    Primary Supply:
    Voltage: 380V, 415V, 440V
    Current: 106A, 97A, 92A
    Frequency: 50/60 Hz

    Transformer Core:
    Type: Three-phase, forced air-cooled, Class H
    Power: 70kVA
    Primary Winding: Delta
    Secondary Winding: Star
    Auxiliary Winding: 110V a.c., 3.3kVA single-phase

    Protection:
    Circuit Breaker: Three-phase 125A circuit breaker with shunt trip

    Thermostats: Three primary core winding over-temperature thermostats linked to circuit breaker shunt trip

    Secondary Outputs:
    Output: 32.5V “0V” 32.5V (for 30V and 60V heating element operation)

    Auxiliary Outputs: Two 110V, 10A, 50/60Hz output sockets

    Temperature Controlled Output Channels: 6 channels

    Maximum Load Per Output Channel: 10.8 kW (e.g., four 60V, 2.7 kW heating elements)

    Maximum Current Per Output Channel: 180A

    Physical Dimensions:
    Dimensions: 810L x 800W x 840H mm
    Weight: 412 kg

    Key Features:

    Traditional Electrical Resistance Method: Uses ceramic pads and blankets controlled by step-down transformers to offer a proven and efficient heat treatment solution for welding.

    Six Output Channels: Each channel provides 12.1 kW of power, suitable for operating four 2.7 kW ceramic pads in parallel for even heat distribution.

    Flexible Heat Control: Offers three operational methods for heat control: fully-integrated individual programmers, an external programmer for all channels, and individual proportional energy regulators.

    Mobile and Versatile: Ideal for both on-site and fabrication shop use, offering convenience and portability for a variety of industrial heat treatment needs.

    Multi-functional Applications: Suitable for preheating, PWHT, tempering metals, and other heat treatment applications that improve the microstructure, durability, and integrity of welded components.

    Global Supply Capability: Available for global supply, this equipment can meet the diverse needs of industries around the world that require post-weld heat treatment solutions.

    Marketing Content

    Efficient, Reliable Heat Treatment for Post Weld Applications

    The LVHT75K 75KVA Heat Treatment Equipment is your go-to solution for achieving optimal results in Post Weld Heat Treatment (PWHT) and other industrial heat treatment processes. This equipment provides quick and efficient heating using the low-voltage electrical resistance method, ensuring improved microstructure, durability, and structural integrity for welded components. It is particularly effective for reducing thermal stress, minimizing the risk of brittle fractures, and preventing corrosion cracking.

    Mobile and Flexible Solution
    Designed for versatility, the LVHT75K can be used both on-site and in fabrication shops, making it an essential tool for industrial operations that require mobility and flexibility. With six temperature-controlled output channels, each capable of delivering up to 12.1 kW of power, this unit can support multiple ceramic pad heaters to handle demanding heat treatment tasks. Whether you need to preheat or perform PWHT, the LVHT75K ensures that your operations are performed safely and efficiently.

    Advanced Control for Precision and Efficiency
    With three operational methods for temperature control—fully-integrated individual programmers, external programmers, and proportional energy regulators—the LVHT75K offers precision and customization for a variety of applications. This ensures that your heat treatment is tailored to meet the specific needs of each job, providing reliable results every time.

    Global Availability
    Our company is proud to offer the LVHT75K Heat Treatment Equipment to customers across the globe. With its flexible, reliable, and cost-effective design, this equipment is ideal for industries worldwide that require a dependable solution for post-weld heat treatment and other metalworking processes.

    Durable and Long-Lasting
    The LVHT75K is designed for long-term durability, with robust protection systems and forced air cooling to ensure optimal performance in the most demanding environments. Whether you are working with metal fabrication, stress relief, or decontamination tasks, this equipment delivers the performance you need to get the job done right.
