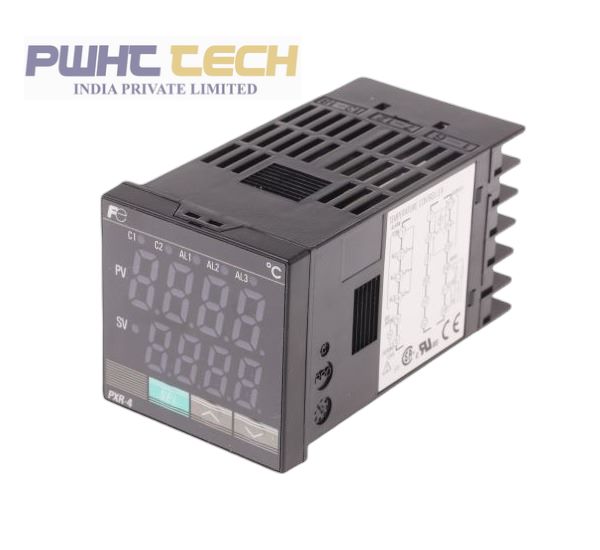

    FUJI PXR4 PID Controller

    FUJI PXR4 PID Controller

    PART NO: FUPXR4PC

    The FUJI PXR4 PID Controller is one of the most compact and reliable controllers available in the market today. Designed with a 1/16 DIN (48mm x 48mm) size, the PXR4 offers a bright, easy-to-read LED display. This versatile controller is ideal for post-weld heat treatment processes and industrial temperature control, featuring auto-tuning, fuzzy control, and self-tuning functions for maximum precision and ease of use. Its advanced functionality makes it the perfect choice for industries where precise temperature management is critical.

    Contact our support team for further information
    support@pwhttech.com

    Key Features:

    PID with Auto-Tune & Fuzzy Control: Ensures accurate temperature regulation and minimizes temperature overshoot and disturbance from external factors.

    Self-Tuning: The controller automatically adjusts its settings based on real-time conditions, eliminating the need for manual retuning.

    Flexible Inputs and Outputs: Accepts thermocouple, RTD, 1-5VDC, and 4-20mA inputs. Outputs include relay contact, SSR/SSC, and 4-20mA for versatile control options.

    Multiple Alarm Options: Includes sixteen types of alarms with one or two relay contact outputs, providing robust monitoring capabilities.

    Power Supply Options: Flexible power supply input of 24VDC, 24VAC, or 100-240VAC, suitable for various industrial environments.

    IP66 Rated Weatherproof Front Panel: Ensures durability and reliability, even in harsh industrial conditions.

    Setpoint Ramping and Dual PID Heating/Cooling: Allows for gradual heating or cooling control to prevent sudden temperature changes.

    Specifications:

    Power Voltage: 100 (-15%) to 240V AC (+10%), 50/60Hz

    Relay Contact Output: SPDT contact, 220V AC / 30V DC 3A (resistive load)

    SSR/SSC Driving Output: 24V DC (17-25V DC), voltage pulse output,

    Maximum current: 20mA

    4-20mA DC Output: Load resistance: 600Ω or less

    Communication Function: RS-485 Modbus interface, supports up to 31 units

    Ambient Temperature: -10 to 50°C

    Operating Humidity: 90% RH or less (no condensation)

    Preservation Temperature: -20 to 60°C

    Heater Disconnection Alarm Output: Relay contact (SPST contact) 220V AC / 30V DC 1A (resistive load)

    Industrial Usage: Primarily used for post-weld heat treatment processes, temperature monitoring, and regulation in critical industrial applications.

    Why Choose PWHT Tech India?

    ✅ 10+ Years of Expertise in manufacturing high-performance ceramic components.
    ✅ Global Distribution for industrial applications worldwide.
    ✅ Custom Options Available to meet specific project requirements.
    ✅ Durable and Reliable for high-temperature environments and PWHT processes.

    Make: PWHT Tech India

    Supplying Capacity: Global Distribution
